Project Type: Perimeter Wall, Flood Proofing
Project Description: This is a flood proofing project at a hybrid office/communications facility that was prone to chronic flooding in the Pacific Northwest.
T-Mobile
Flood barrier system with bulkhead channel

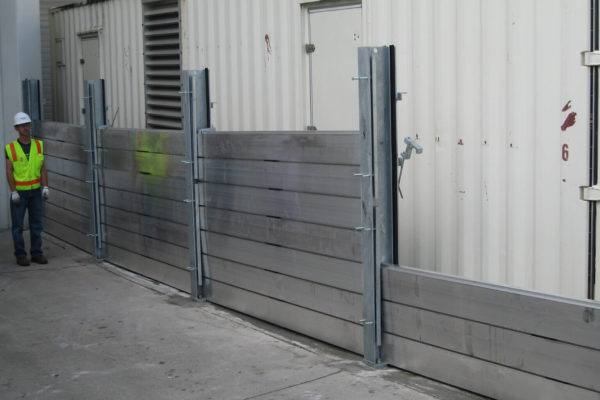

Due to tight spaces, the flood protection system on this installation used primarily 10′ planks.
Flood barrier system - complex corner post

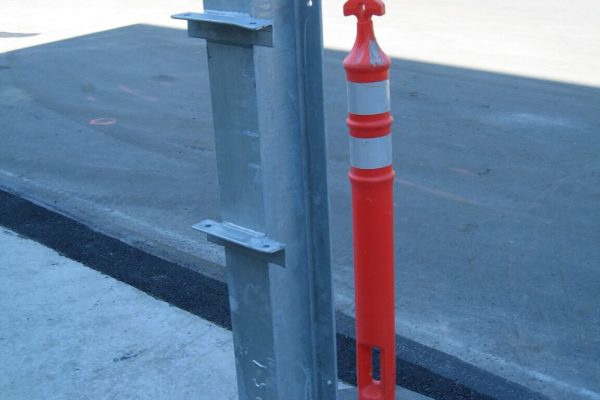

A custom three-way corner post with a fixed strut.
Flood barrier system - hold down clamps

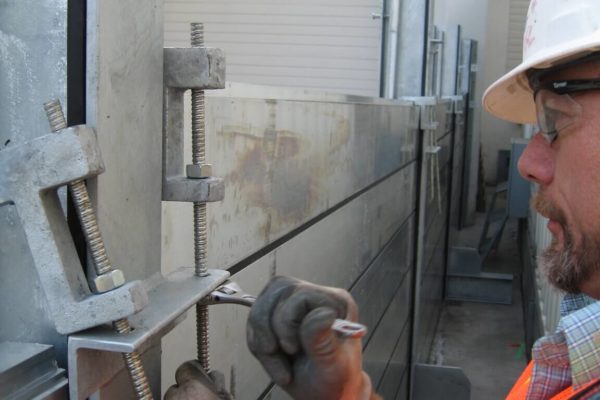

Hold down clamps tighten the flood planks against the horizontal gaskets creating a watertight flood panel.
Flood wall team
A happy flood wall erection crew and a job well done.
Complex flood proofing configuration

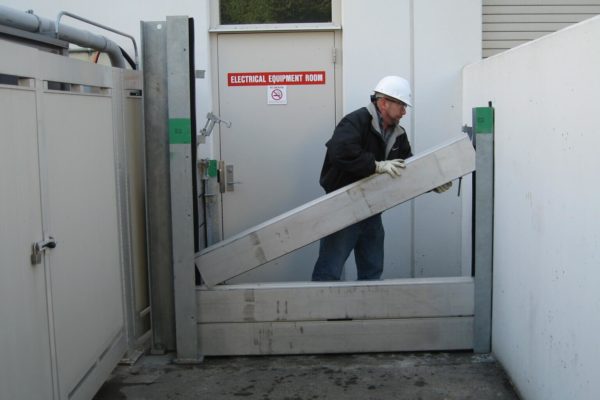

This small closure configuration contains a corner post to allow for running the flood system to and away from the inner bulkhead, and also includes two bolt-on bulkhead channels.
Flood proofing door closure

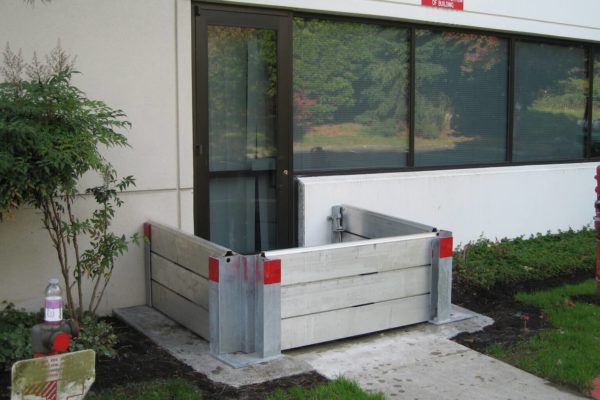

These office doors have to open outward to conform to the local fire code.
Flood barrier system

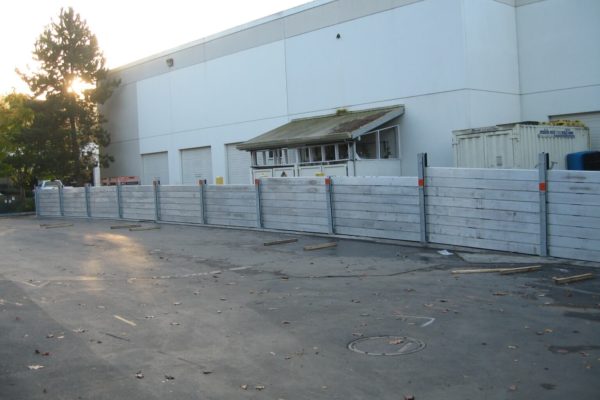

The rear of the building contains a continuous run of the removable flood wall system.
Aluminum flood planks

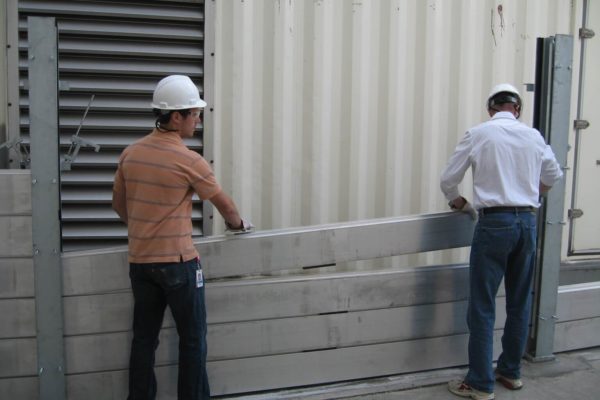

The stop logs weigh only 5 pounds per lineal foot and are easily handled by office workers.
Flood wall system - bulkhead channel

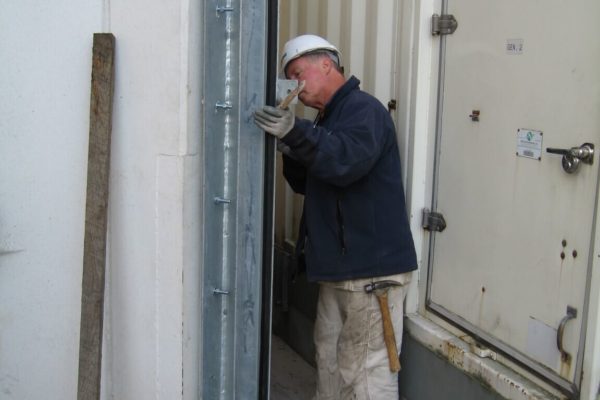

Drilled-in anchors allow for a bolt-on channel.
Flood proofing door closure
These office doors have to open outward to conform to the local fire code.
Flood barrier system - compression channels

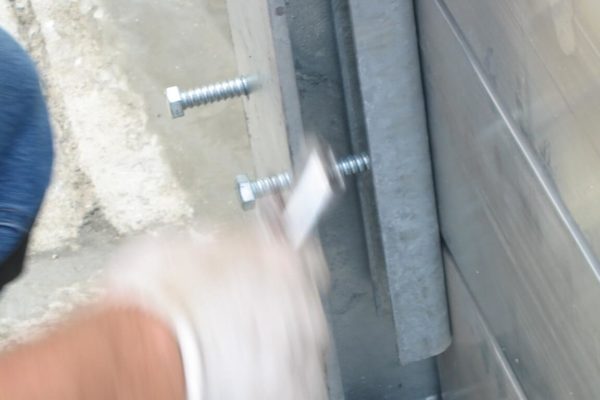

The tightening of the compression channels forces the stop logs against the vertical gaskets.
